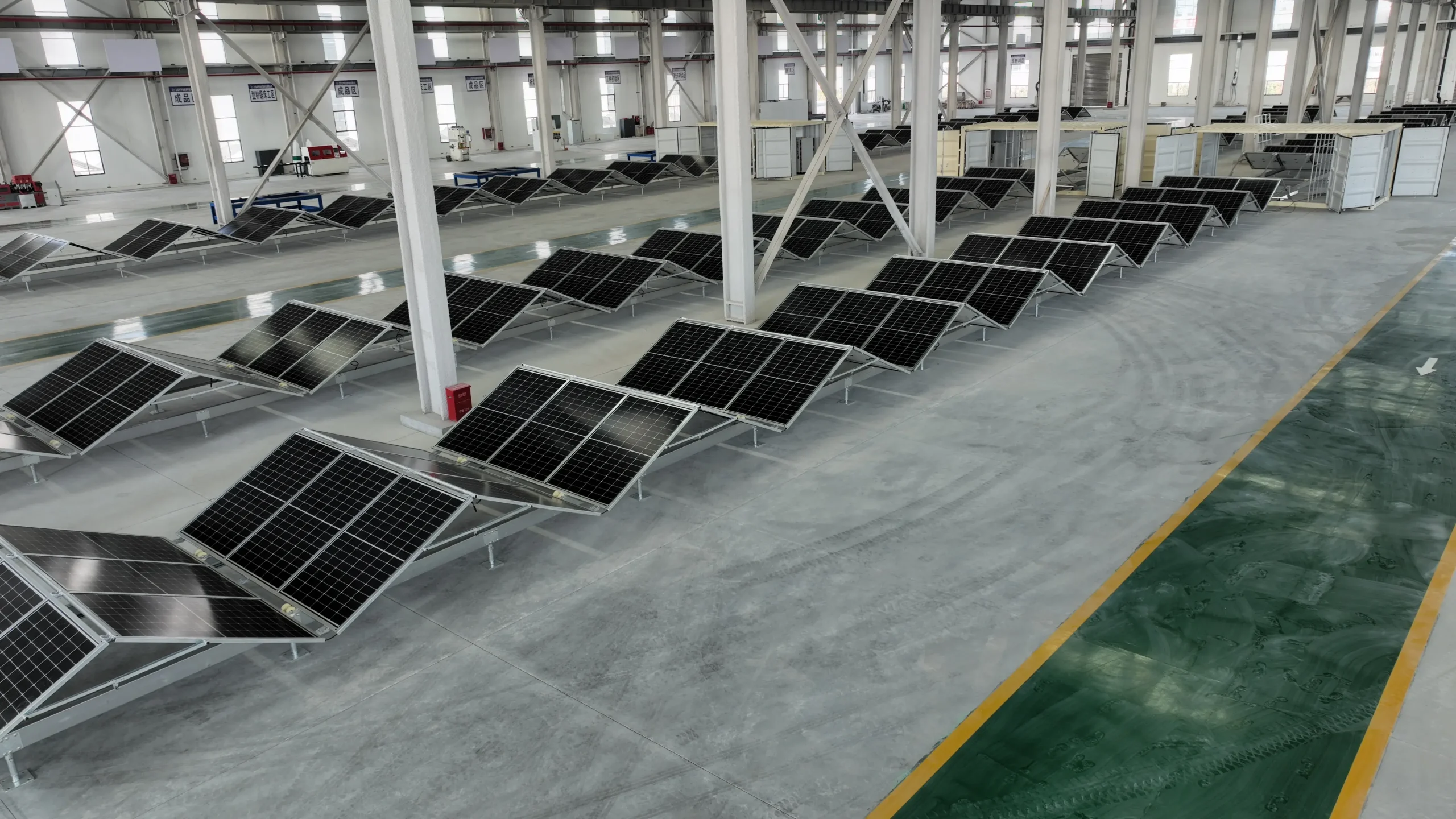

Mobile Solar Power Station 200K Series
Mobile Solar Power Station

Mobile Solar Power Station

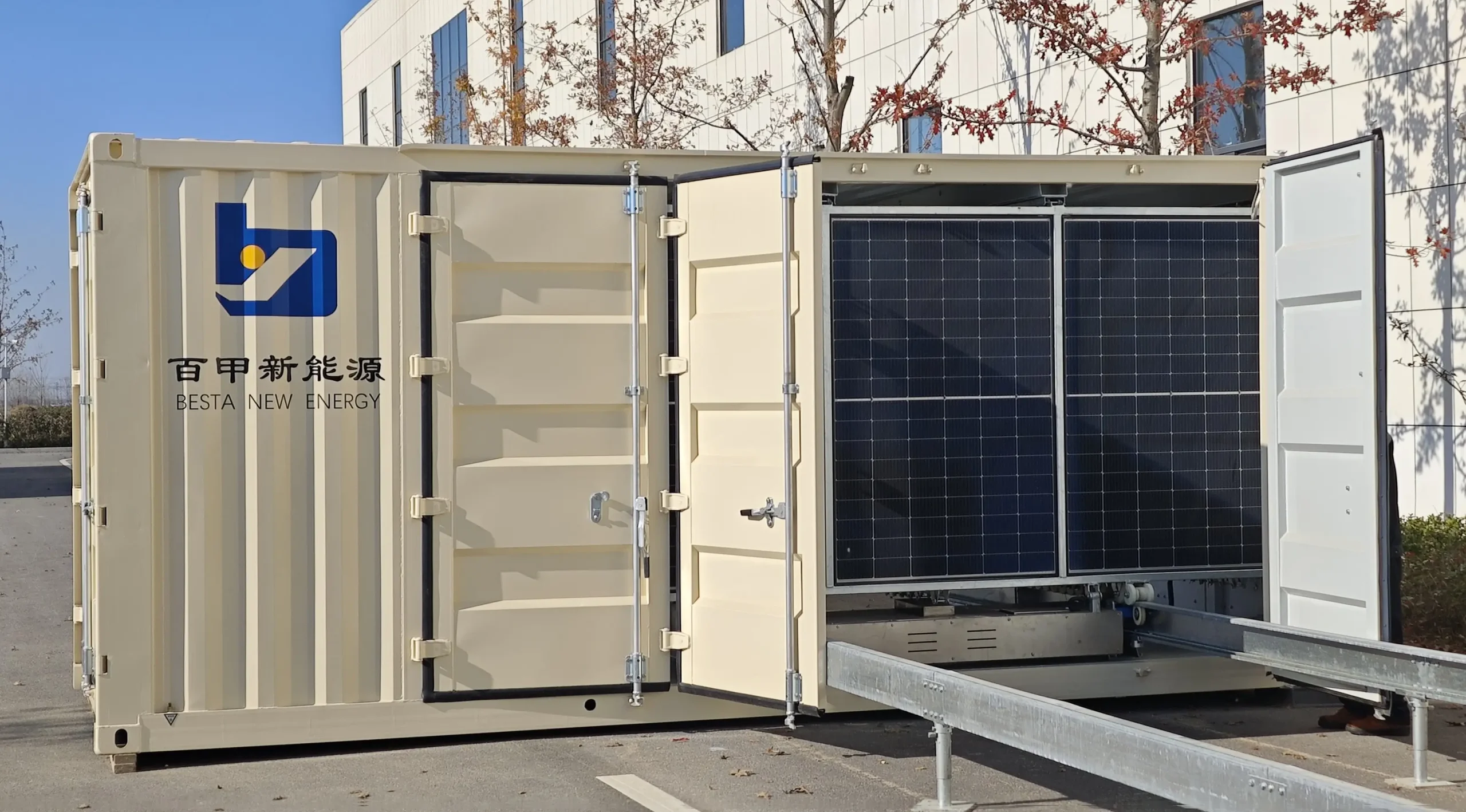

The mobile solar power station is a containerized solar system built for off-grid power supply. Photovoltaic modules fold inside a standard shipping container during transport. On arrival, the modules slide out along rails and lock into a fixed tilt angle. The solar container starts producing power in about 30 minutes.

Selected models integrate LiFePO4 battery storage for continuous day-and-night supply. The unit serves as a diesel generator replacement at remote worksites. Six series cover 15 kW to 204 kW, with 24 models in total.

Product Detail
  • Solar + Storage Integrated System

    Solar + Storage Integrated System

    The mobile solar power station combines PV generation, hybrid inverter conversion, and battery storage in one container. The solar + storage integrated system delivers AC power directly to site loads. Models with LiFePO4 battery storage supply power after sunset and smooth daytime fluctuations.

    The 75K, 175K, and 200K series ship without battery storage for grid-connected or generator-hybrid use. The 20K, 56K, and 150K series offer battery capacities of 40 kWh, 121 kWh, and 261 kWh as standard, with other sizes available.

  • Foldable Solar Panels

    Foldable Solar Panels

    The foldable solar panels stack flat inside the container for transport. All series use N-type TOPCon modules with a conversion efficiency of 22% or higher. The 150K, 175K, and 200K series reach 23% or higher. Modules use tempered glass with an aluminum alloy frame and operate from -40 to +85°C.

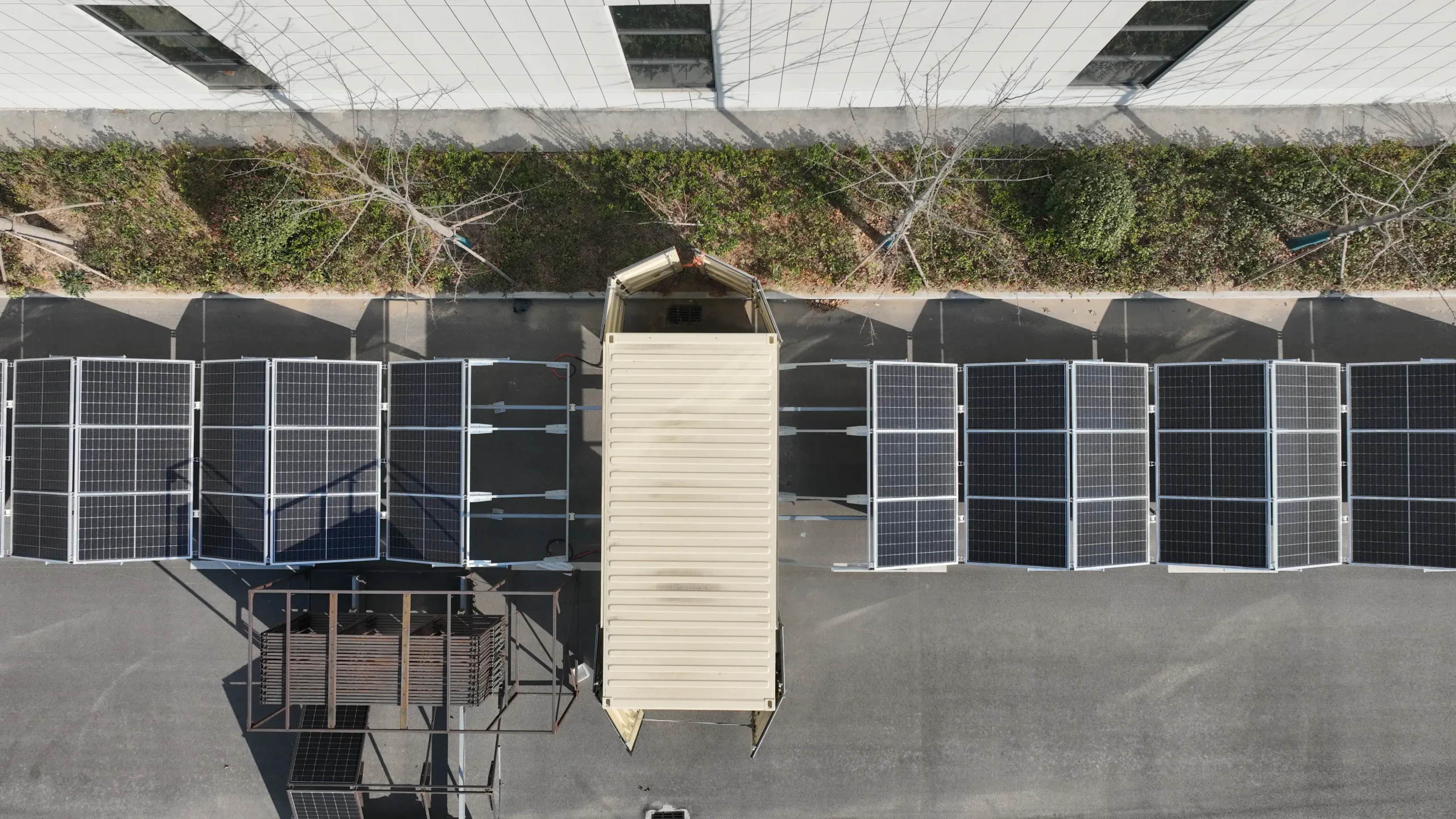

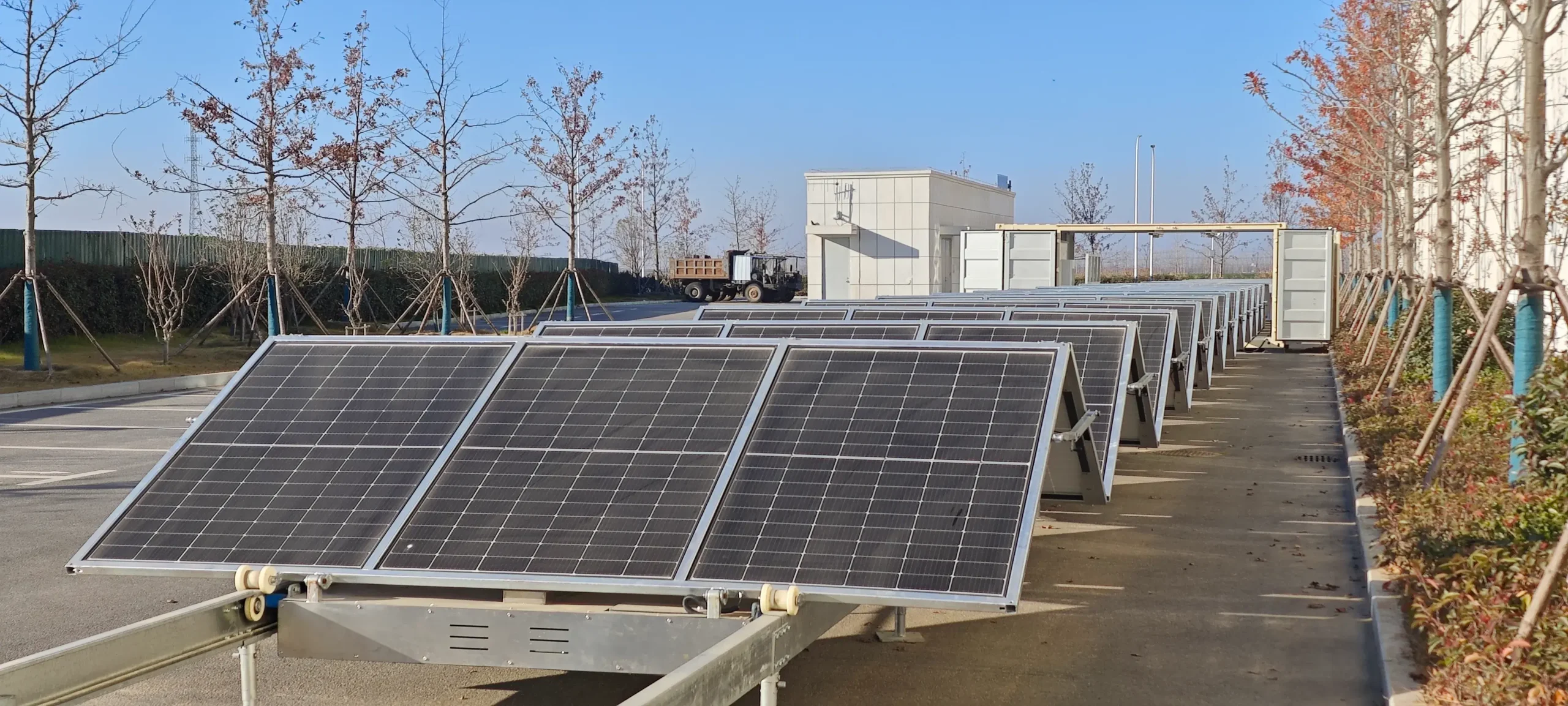

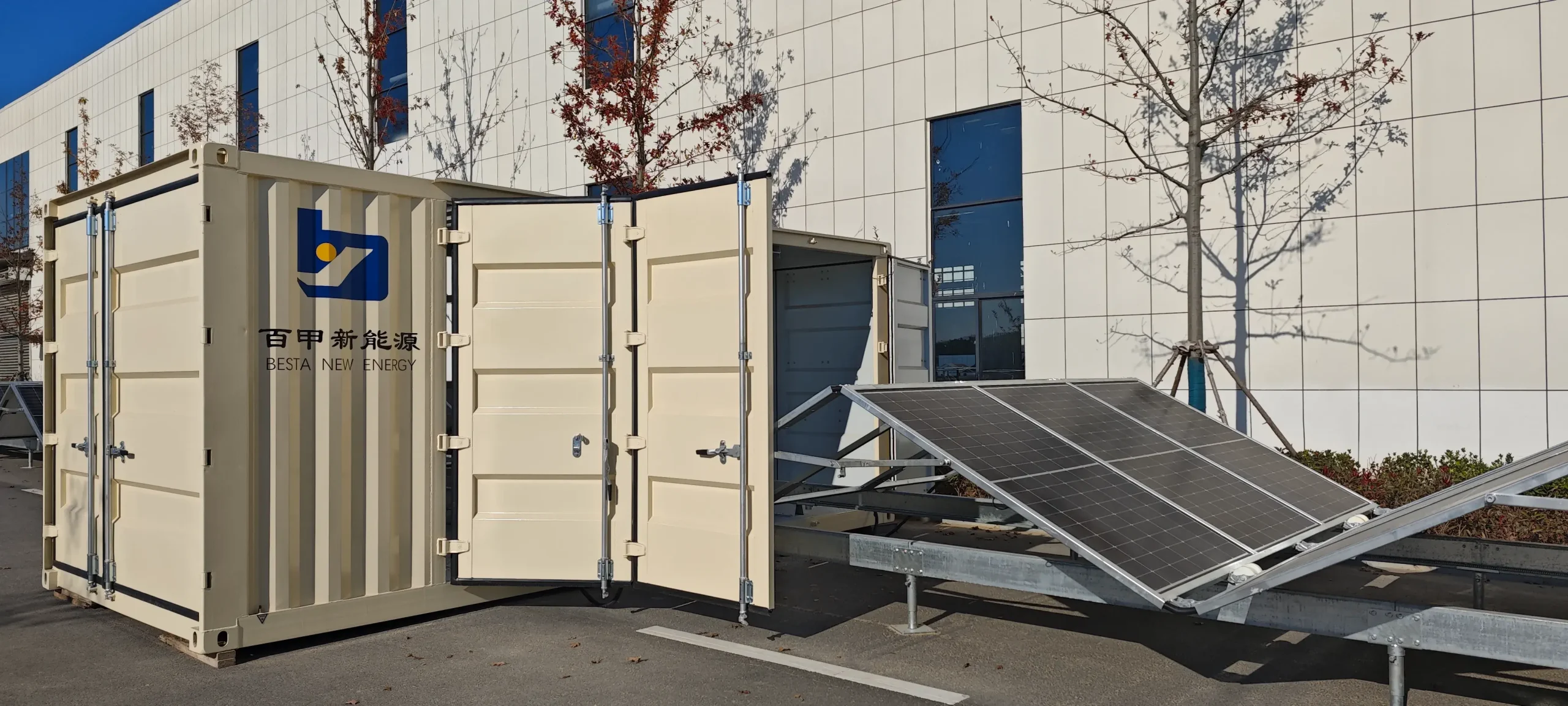

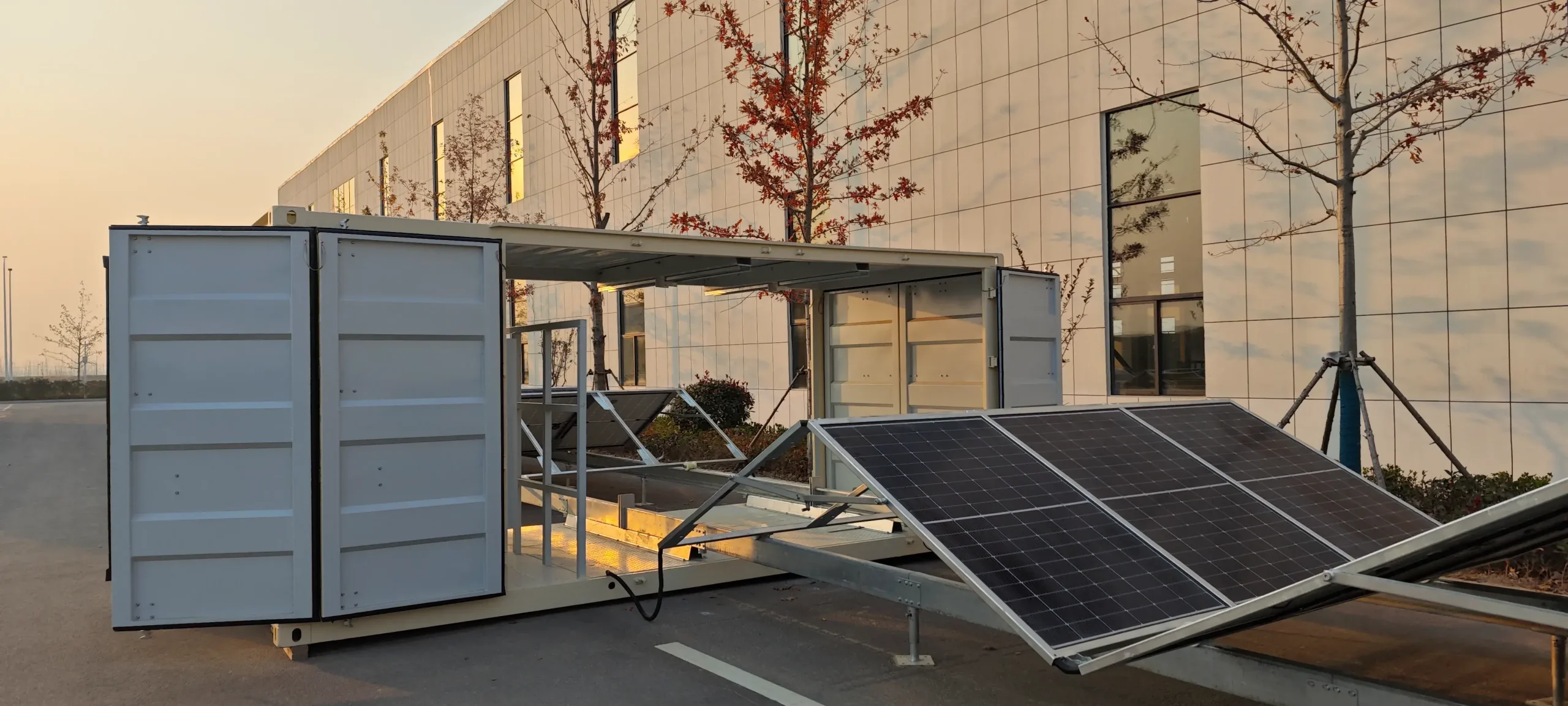

    Once on site, the panels extend along zinc-aluminum-magnesium rails into a fixed 25° tilt. The 20K series unfolds manually on one side. Larger series unfold electrically on both sides of the container.

  • Fast Deployment

    Fast Deployment

    Deployment requires no permanent civil works. The 20K series arrives by forklift and lays rails in 4 hours. The 56K and 75K series arrive by crane and lay rails in 8 and 10 hours. The 150K and 175K series lay rails in 15 hours, and the 200K series in 20 hours.

    Panel extension takes 30 minutes or less on every series. The system is ready for load connection the same day it arrives.

  • Plug-and-Play Operation

    Plug-and-Play Operation

    The plug-and-play design connects to site loads through standard industrial interfaces. The hybrid inverter outputs 380V/400V 3L/N/PE at 50/60Hz. RS485 communication comes as standard. CAN, ARC, PARA, USB, NTC, DRM, and KIN interfaces are available as options. The container reaches IP55 protection in the stowed state and resists level 9 wind when deployed.

Mobile Solar Power Station

Advantages of Mobile Solar Power Station

  • Rail-based panel extension enables fast deployment in 30 minutes or less after rail installation.
  • Integrated PV and LiFePO4 battery storage allow off-grid operation around the clock.
  • Solar generation serves as a diesel generator replacement and reduces fuel logistics and delivery risk.
  • Zero fuel consumption and 5000–8000 battery cycles reduce operating cost over the service life.
  • The container format allows transport by standard truck, ship, and crane without special permits.
  • IP55 protection, C5 salt-mist resistance, and a -20 to +50°C operating range allow use in harsh climates.
  • Electric double-side unfolding on larger series reduces on-site labor and setup time.
  • A 130° frame angle and 25° fixed tilt allow high yield without tracking systems.

Applications

  • Mining Camps

    Mining camps often sit beyond the reach of the power grid. The mobile solar power station with battery storage delivers reliable power for camp lighting, ventilation, water pumps, and communication equipment. The containerized solar system relocates when the mine moves to a new pit. Salt-mist resistance up to C5 supports operation in coastal and high-corrosion areas.

  • Construction Sites

    Construction sites need power before the grid connection exists. The solar container supplies tower cranes, site offices, welding equipment, and lighting. Foldable solar panels deploy within one working day and repack for the next project. The system cuts diesel fuel deliveries on remote job sites.

  • Remote Areas

    Remote villages, farms, and telecom stations face high grid-extension costs. The mobile solar power station provides standalone power without transmission lines. The 20K series fits compact sites with its 3600×2150×2200 mm container and forklift placement. Larger series power entire microgrids up to 204 kW per unit.

  • Emergency Power Supply

    Disaster response requires power within hours, not weeks. A 20ft mobile solar power station arrives by truck or ship and starts feeding loads the same day. The stowed container withstands transport shocks at IP55. Battery-equipped models keep critical loads running through the night without fuel resupply.

Specifications

Series Overview (Representative Models)

Parameter 20K Series 56K Series 75K Series 150K Series 175K Series 200K Series
Representative Model BJ-M-20K BJ-M-56K BJ-M-75K BJ-M-150K BJ-M-175K BJ-M-200K
Capacity 20 kW 56 kW 77 kW 152 kW 175 kW 204 kW
Total PV Output (±5%) 20160 W 56760 W 77440 W 152880 W 176400 W 204160 W
Container Size 3600×2150×2200 mm 6058×2438×2591 mm 6058×2438×2591 mm 12192×2438×2896 mm (40ft) 12192×2438×2896 mm 12192×2438×2896 mm
Weight (excl. battery) 4.3 t 15 t 15 t 36 t 34.5 t 34 t
Deployed Footprint 39×4 m 85×6 m 85×6 m 96×12 m 96×12 m 110×12 m
Inverter Output 20 kW 50 kW 75 kW 150 kW 160 kW 180 kW
Battery Storage LiFePO4, 40 kWh standard, 6000 cycles LiFePO4, 121 kWh standard, 5000–8000 cycles None LiFePO4, 261 kWh standard, 5000–8000 cycles None None

Complete Model List (All 24 Models)

Series Model Capacity (kW) Total PV Output (W, ±5%) Weight (t) Deployed Footprint (m)
20K BJ-M-15K 15 15840 3.8 33×4
20K BJ-M-17K 17 17280 4 35×4
20K BJ-M-18K 18 18720 4.1 37×4
20K BJ-M-20K 20 20160 4.3 39×4
56K BJ-M-40K 40 40920 12.5 63×6
56K BJ-M-46K 46 46200 13.5 71×6
56K BJ-M-51K 51 51480 14 76×6
56K BJ-M-56K 56 56760 15 85×6
75K BJ-M-56K 56 56320 12 63×6
75K BJ-M-63K 63 63360 13 71×6
75K BJ-M-70K 70 70400 14 76×6
75K BJ-M-75K 77 77440 15 85×6
150K BJ-M-109K 109 109200 33 70×12
150K BJ-M-123K 123 123760 34 79×12
150K BJ-M-138K 138 138320 35 87×12
150K BJ-M-150K 152 152880 36 96×12
175K BJ-M-133K 133 133120 31 70×12
175K BJ-M-141K 141 141440 32 79×12
175K BJ-M-158K 158 158080 33.5 87×12
175K BJ-M-175K 175 176400 34.5 96×12
200K BJ-M-148K 148 148480 31 85×12
200K BJ-M-167K 167 167040 32 94×12
200K BJ-M-185K 185 185600 33 102×12
200K BJ-M-200K 204 204160 34 110×12

Deployment Method by Series

Series Placement Unfolding Rail Installation Unfolding Time
20K Forklift Single side, manual 4 h ≤30 min
56K Crane Double side, electric 8 h ≤30 min
75K Crane Double side, electric 10 h ≤30 min
150K Crane Double side, electric 15 h ≤30 min
175K Crane Double side, electric 15 h ≤30 min
200K Crane Double side, electric 20 h ≤30 min

PV Modules by Series

Parameter 20K Series 56K / 75K Series 150K / 175K Series 200K Series
Cell Type N-type TOPCon N-type TOPCon N-type TOPCon N-type TOPCon
Power per Module 690–720 W 440–460 W 510–530 W 580–600 W
Module Dimensions 2438×1134×30 mm 1762×1134×30 mm 1961×1134×30 mm 2278×1134×30 mm
Glass Bifacial, 1.6 mm tempered 1.6 mm tempered 2.0 mm tempered 2.0 mm tempered
Conversion Efficiency ≥22% ≥22% ≥23% ≥23%
Module Weight 33.2 kg 21.5 kg 26.9 kg 31 kg

Inverter and Battery

Parameter Value
Inverter Type Hybrid inverter
Rated Output 20 kW (20K) / 50 kW (56K) / 75 kW (75K) / 150 kW (150K) / 160 kW (175K) / 180 kW (200K)
Output 380V/400V 3L/N/PE, 50/60 Hz
Communication RS485 (standard); CAN, ARC, PARA, USB, NTC, DRM, KIN (optional)
Battery Chemistry LiFePO4
Standard Battery Capacity 40 kWh (20K) / 121 kWh (56K) / 261 kWh (150K); capacity customizable
Battery Cycle Life 6000 cycles (20K); 5000–8000 cycles (56K, 150K)
Battery Availability Not fitted on 75K, 175K, and 200K series

Common Parameters (All Series)

Parameter Value
Container Material Carbon steel
Protection Rating IP55 (stowed state)
Wind Resistance (deployed) Level 9
Salt-Mist Resistance ≤C5
Operating Temperature -20 to +50°C
Storage Temperature (excl. battery) -20 to +60°C
Mounting Frame Galvanized carbon steel, zinc coating ≥55 μm
Frame Angle 130°
Installation Tilt 25°
Rails Zinc-aluminum-magnesium, coating ≥275 g/m²
Adjustable Base Height 50–80 mm

Certifications

Certification Marks

The mobile solar power station carries the following certifications:

  • CE (LVD, EMC, RoHS, ErP)
  • TÜV
  • LPSR
  • PNS
  • ICC
  • SNI
  • TKDN
  • SABS
  • NERSA
  • GCC
  • SASO
  • ESMA

Design & Test Standards

The system is designed and tested to these standards:

Electrical

  • IEC 60364
  • IEC 62548-1
  • IEC 60439-1
  • IEC 61643-21
Mechanical

  • ISO 12100
